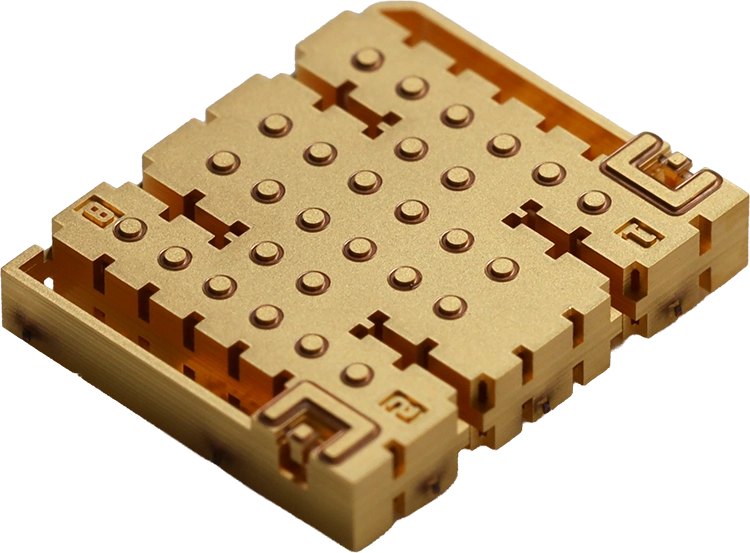

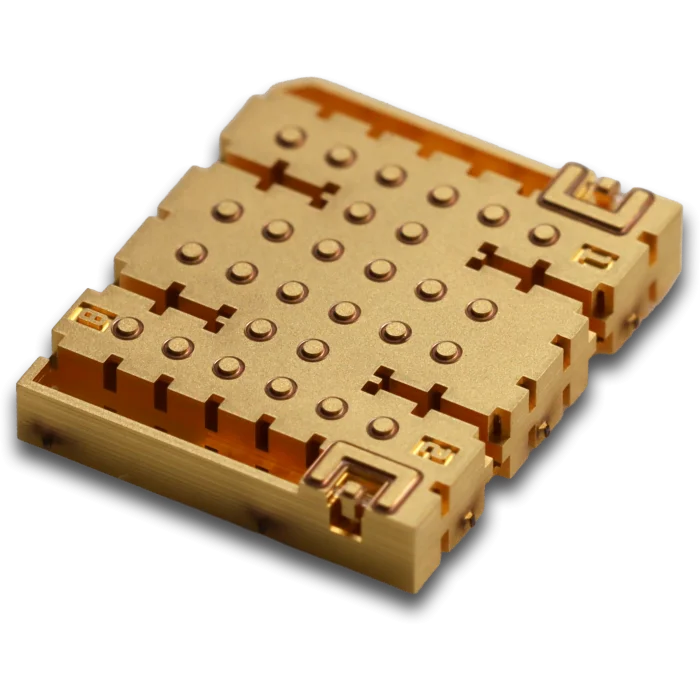

The PSF1031758 is a 4th order interdigital filter, with a pass-band of 9.0–9.5 GHz. It provides <1.4dB insertion loss with high out of band rejection. The mounting interface provided is a SMT interface compatible with standard attach processes.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| 9 - 9.5 GHz 4th Order Interdigital Filter | PSF1031758 | 9 - 9.5 GHz | 9.4 x 7.9 x 1.7 (mm) | <1.4 dB |
Product Benefits
- Low Loss
- High Rejection
- High Repeatability
- Compact Size
- CTE matched to PCB
Key Applications
Back-Haul TelecommMarine RadarWeather Radar
