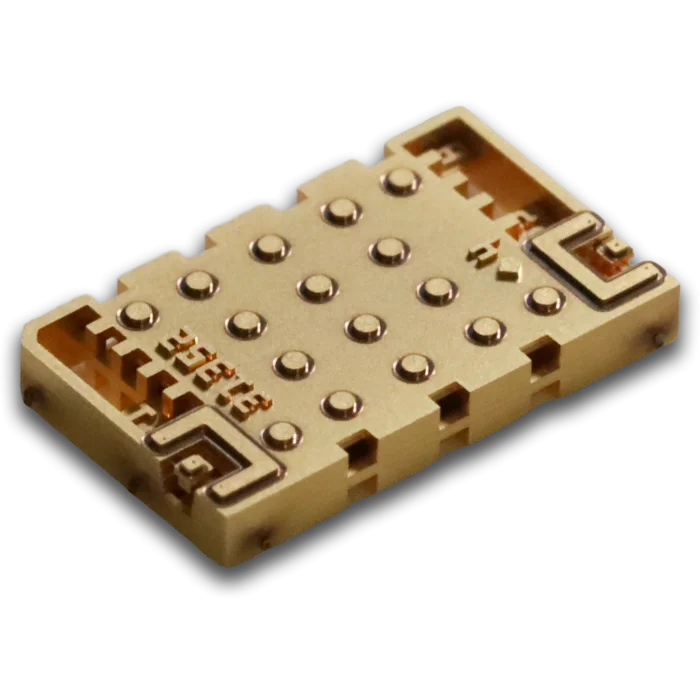

The PSF1031352-AA is a 7th order interdigital filter, with a pass-band of 17.8–19.4 GHz. It provides <2dB insertion loss with high out of band rejection. The mounting interface provided is a SMT interface compatible with standard attach processes.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| 17.8 – 19.4 GHz Bandpass Filter | PSF1031352-AA | 17.8 – 19.4 | 4.73 x 7.84 x 1.1 (mm) | < 2 dB |
Product Benefits
- Low Loss
- High Rejection
- High Repeatability
- Compact Size
- CTE matched to PCB
Key Applications
Satellite Communications
