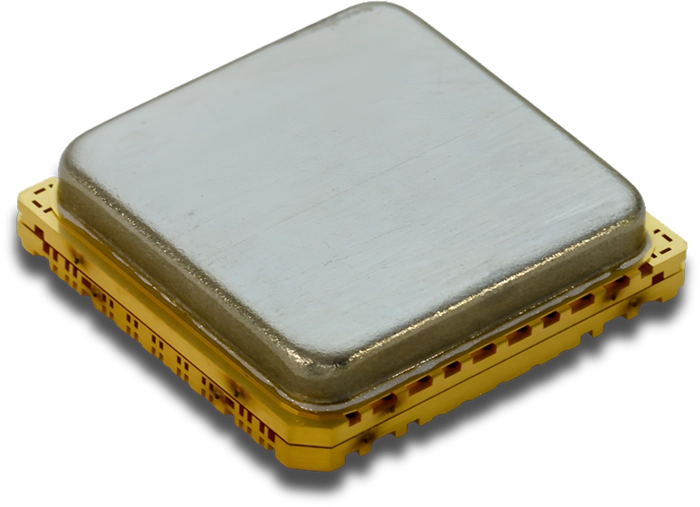

Precision SMT Filtering with Fast Switching
Our switched filter banks deliver compact, high-performance frequency selection for mission-critical RF systems. Choose from standard 4-channel solutions covering 17.7–40 GHz or custom configurations with 4+ channels from 2–60 GHz. Designed for high linearity, low insertion loss, and fast switching, these bandpass filter solutions support demanding satellite communication systems, electronic warfare, and wideband transmit/receive applications.
Switched Filter Banks Engineered for Agile, Multi-Band RF Performance
- Standard & Custom Configurations — 4-channel standard solutions with custom 4+ channel options
- Wide Frequency Coverage — Standard solutions from 17.7–40 GHz with custom designs spanning 2–60 GHz
- Compact SMT Form Factor — Simplifies integration into size, weight, and power-constrained platforms
- High Linearity, Low Loss Performance — Maintain signal integrity across wideband RF systems
- Fast Switching with High Isolation — Enable agile frequency selection in dynamic environments
Key Applications
Our Switched Filter Banks
| Product Name | Designed with Strataworks | SKU | Frequency (Ghz) | Insertion Loss | Dimensions | Data Sheet | Buy |
|---|---|---|---|---|---|---|---|

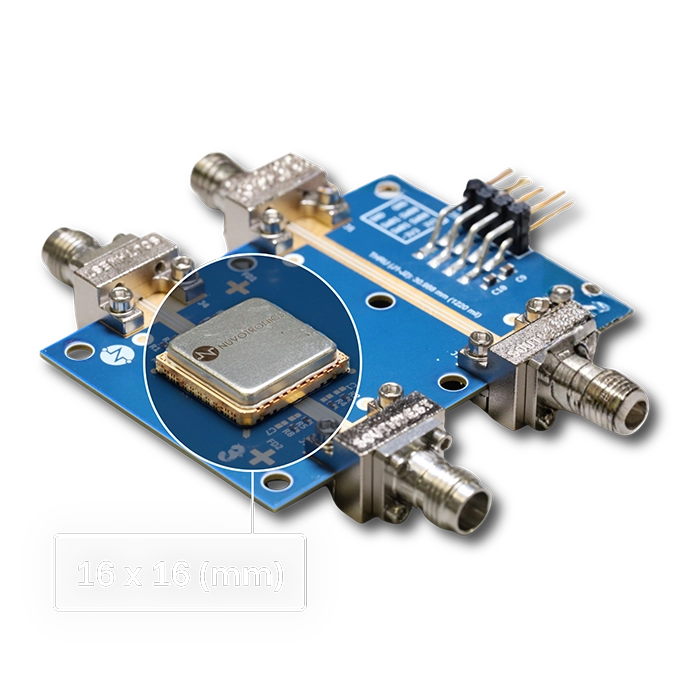

| 17.5 - 24 - 29.5 - 35 - 40 GHz 4-Channel | PSB1030148 | 17.5 - 24 - 29.5 - 35 - 40 | < 7.5 db | 16.3 x 15.8 x 4 (mm) |
|
|
Design Filters With Strataworks® or Contact Our Team for Tailored Solutions
Explore Our Switched Filter Banks and Bandpass Filters
Browse standard switched filter banks or collaborate with our team to develop a custom bandpass filter solution designed for your RF system requirements.
