Broad and Narrow Band Performance
Our combiners deliver efficient signal combining with low loss and high isolation for commercial and defense applications. Solutions are available for broad and narrow band performance up to 110 GHz, supporting up to 80W combined power. With SMT, wirebond, and waveguide/coaxial output options, these power combiners provide flexible integration and reliable performance across demanding RF systems.

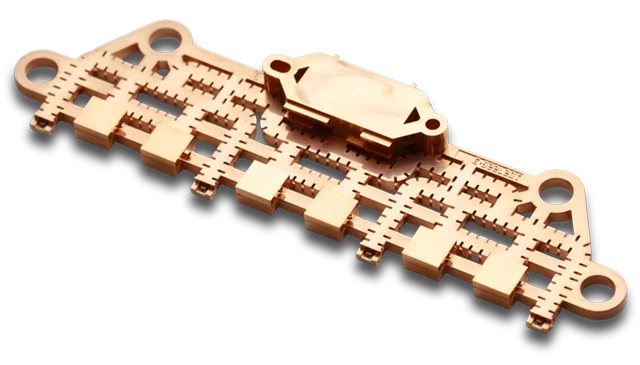

Combiners Designed for Efficient RF Power Combining
- High Power Handling — Supports up to 80W combined power for demanding RF systems
- Low Insertion Loss — Less than 0.5 dB to preserve signal integrity and efficiency
- High Isolation Performance — Greater than 15 dB isolation for improved system reliability
- Broad & Narrow Band Options — Performance up to 110 GHz across multiple applications
- Flexible Interface Options — SMT, wirebond, and waveguide/coaxial output configurations
Key Applications
Our RF Combiners
| Product Name | Frequency (Ghz) | Insertion Loss | Output Power | Market | Data Sheet | Buy |
|---|---|---|---|---|---|---|
| 18 - 40 GHz 4-Way Combiner | 18-40 | 0.4 dB | 80W | Electronic Warfare |
|
|
| 27.5 - 31 GHz 4-Way Combiner | 27.5-31 | 0.4 dB | 80W | Commercial & Defense Space |
|
|
| 47.2 - 52.4 GHz 4-Way Combiner | 47.2-52.4 | 0.5 dB | 80W | Commercial Space |
|
|
| 6 - 18 GHz 4-Way Combiner | 6-18 | 0.4 dB | 80W | Electronic Warfare |
|
|
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions
Explore Our Broad and Narrow Band RF Combiners
Browse standard RF combiners or work with our team to develop a custom antenna, hybrid, or waveguide combiner designed for your performance and integration requirements.
