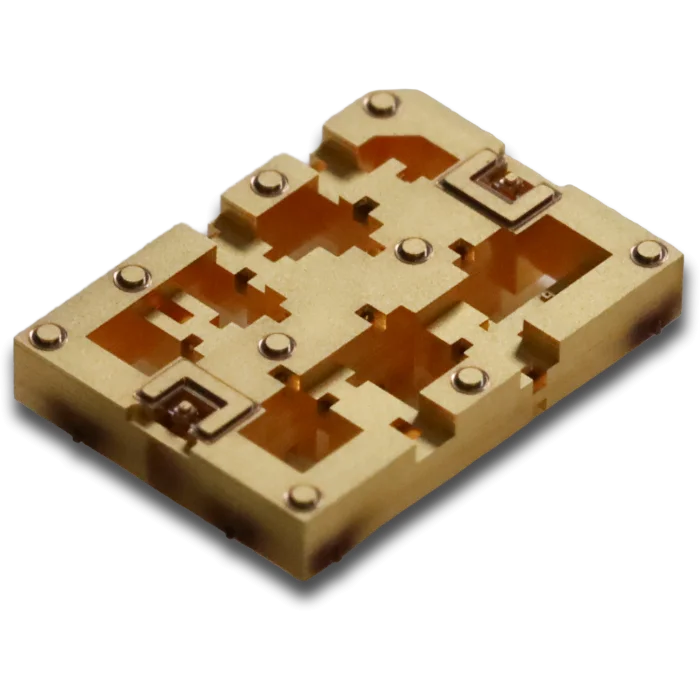

K-Band, Surface-Mount Filter in a miniature size.
Nuvotronics PolyStrata® Technology offers a high performance filter in a small form factor (8.4 x 5.9mm) with an insertion loss of 37dB rejection above 20GHz. This device is ideal for commercial satcom, defense and test & measurement for both Rx and Tx applications.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| 18 GHz Lowpass Filter | PSFL18S | 18 | 8.4 x 5.9 x 1.75 (mm) | < 1.5 dB |
• Small Size and Lightweight – Weight: 0.32g
• Near Ideal Performance – Low insertion loss and high rejection
• Precision – Low part-to-part variation
• Ease of Assembly – Standard SMT processes
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions
