Nuvotronics, Inc.

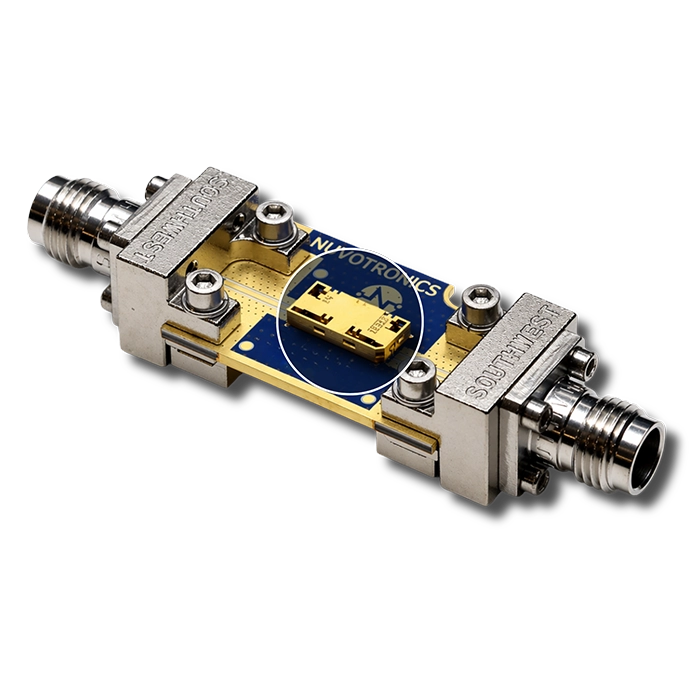

Nuvotronics PolyStrata RF Filter on PCB
SKU: PSFL40S

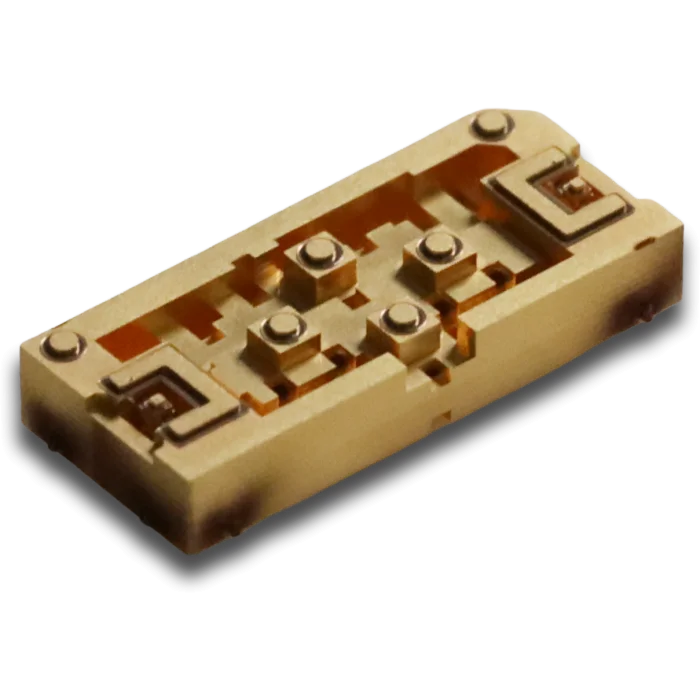

40 GHz Lowpass Filter

Ka-Band, Surface-Mount Filter in a miniature size.

Nuvotronics PolyStrata® Technology offers a high performance filter in a small form factor (7.8 x 3.3mm) with an insertion loss of 35dB rejection above 45GHz. This device is ideal for commercial satcom, defense and test & measurement for both Rx and Tx applications.

Buy Now
Datasheet

Features

Product NameSKUFrequency (Ghz)DimensionsInsertion Loss
40 GHz Lowpass FilterPSFL40S407.8 x 3.3 x 1.75 (mm)< 1.5 dB

Product Benefits

  • Small Size and Lightweight – Weight: 0.19g
  • Near Ideal Performance – Low insertion loss and high rejection
  • Precision – Low part-to-part variation
  • Ease of Assembly – Standard SMT processes

Key Applications

DefenseSatellite CommunicationsTelecomTest & Measurement
