Standard and Device-Specific Integration
Our mmWave packages deliver high-performance surface mount (SMT) integration for millimeter wave systems. Choose from standard mmWave packages or device-specific designs tailored for MMIC integration. Leveraging proprietary PolyStrata® technology, these compact solutions enable low-loss signal routing, precise impedance control, and wire bonded MMIC integration while maintaining excellent thermal performance.
Engineered for High-Frequency RF/mmWave Performance
- Standard & Device-Specific Options — Choose from standard packages or custom designs for specific devices
- High-Performance Surface Mount (SMT) — Compact mmWave packages simplify high-frequency system integration
- Low-Loss Signal Integrity — PolyStrata® technology minimizes parasitics and maintains signal fidelity

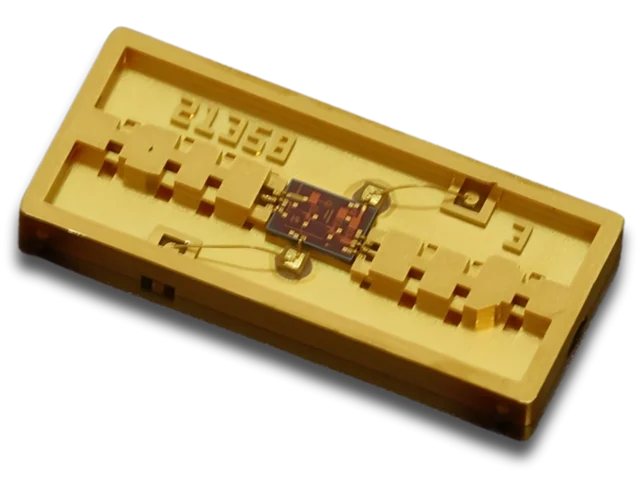

- Wire Bonded MMIC Integration — Air-cavity designs support high-performance device packaging
- Thermally Efficient Copper Construction — High thermal conductivity supports reliable operation
Key Applications
Our Standard RF/mmWave Packages
| Product Name | Frequency (Ghz) | Insertion Loss (AB) | Return Loss (AB) | Max Die Size (L x W x D) | Package Size (L x W x D) | DC Pins | Data Sheet | Buy |
|---|---|---|---|---|---|---|---|---|
| RF/mmWave Package: PSP1028107 | 95 | 0.65 | 12 | 2.71 x 2.55 x 0.1 (mm) | 6 x 6 x 0.7 (mm) | 12 |
|
|
| RF/mmWave Package: PSP1028108 | 95 | 0.65 | 12 | 1.71 x 1.55 x 0.1 (mm) | 5 x 5 x 0.7 (mm) | 8 |
|
|
| RF/mmWave Package: PSP1028109 | 50 | 0.3 | 12 | 5 x 5 x 0.1 (mm) | 7 x 7 x 0.4 (mm) | 12 |
|
|
| RF/mmWave Package: PSP1028111 | 50 | 0.3 | 12 | 3 x 3 x 0.1 (mm) | 5 x 5 x 0.4 (mm) | 8 |
|
|
| RF/mmWave Package: PSP1028112 | 50 | 0.3 | 12 | 2 x 2 x 0.1 (mm) | 4 x 4 x 0.4 (mm) | 6 |
|
|
Our Device-Specific RF/mmWave Packages
| Product Name | Matching Device | Manufacturer | Package Size (L x W x D) | Data Sheet | Buy |
|---|---|---|---|---|---|
| RF/mmWave Package: PSP1029439 | TGA2962 | Qorvo | 5.5 x 6 x 1.425 (mm) |
|
|
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions
Explore Our Standard and Custom RF/mmWave Packages
Browse standard RF/mmWave packages or collaborate with our team to develop a device-specific solution optimized for performance, integration, and thermal requirements.
