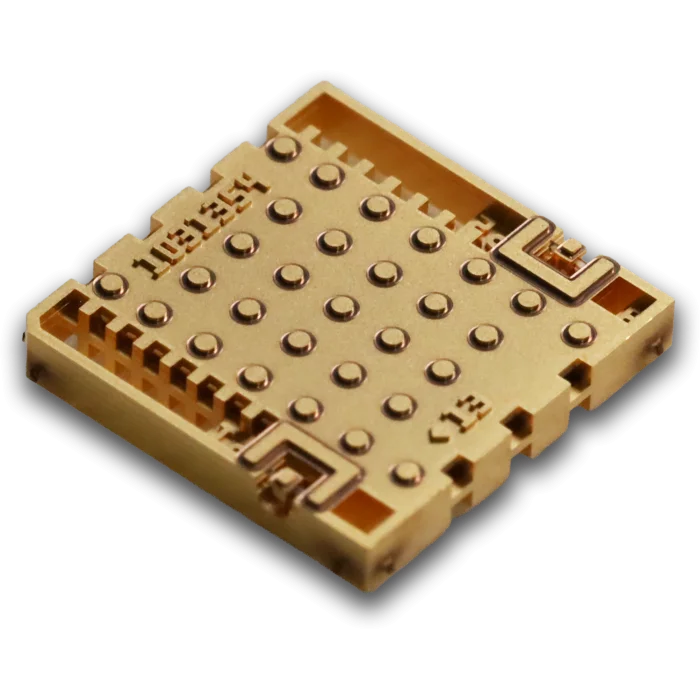

The PSF1031354-AA is a 7th order interdigital filter, with a pass-band of 10.8–12.6 GHz. It provides <2dB insertion loss with high out of band rejection. The mounting interface provided is a SMT interface compatible with standard attach processes.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| 10.8 – 12.6 GHz Bandpass Filter | PSF1031354-AA | 10.8 – 12.6 | 7.24 x 7.37 x 1.1 (mm) | < 2 dB |
Product Benefits
- Low Loss
- High Rejection
- High Repeatability
- Compact Size
- CTE matched to PCB
Key Applications
Satellite Communications
Related Products
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions
