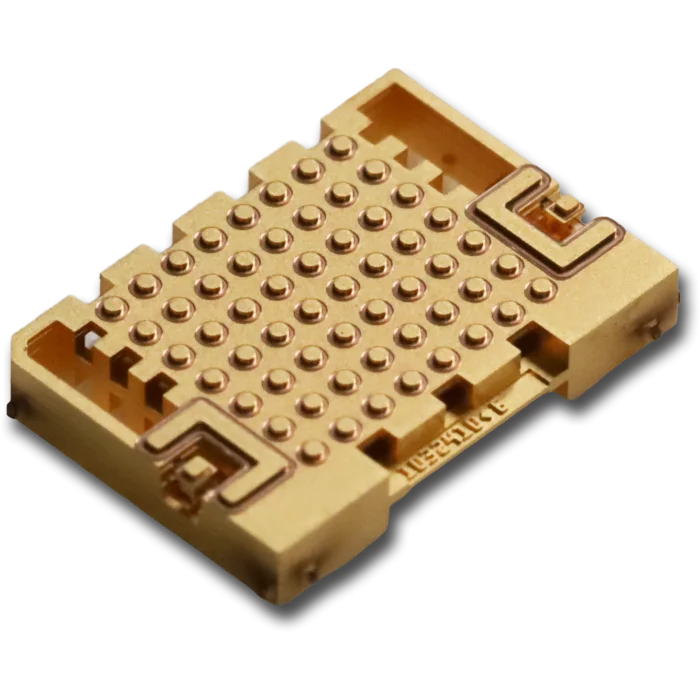

The PSF1032410 is a 7th order interdigital filter, with a pass-band of 17.3–21.2 GHz. It provides <1.3dB insertion loss with high out of band rejection. The mounting interface provided is a SMT interface compatible with standard attach processes.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| 17.3 – 21.2 GHz Bandpass Filter | PSF1032410 | 17.3 – 21.2 | 7.16 x 5.05 x 1.1 (mm) | <1.3 dB |
Product Benefits
- Low Loss
- High Rejection
- High Repeatability
- Compact Size
- CTE matched to PCB
Key Applications
Satellite Communications
