Nuvotronics, Inc.

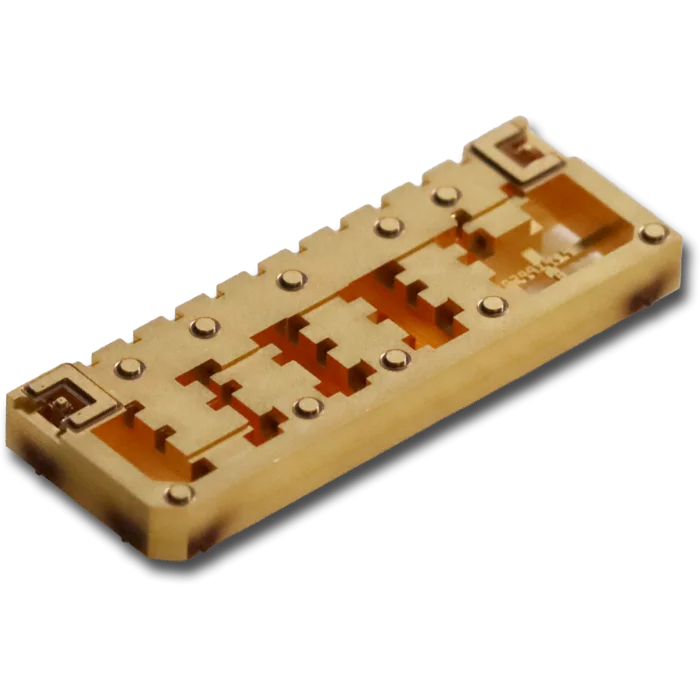

Nuvotronics PolyStrata RF Filter on PCB
SKU: PSFL12S

12 GHz Lowpass Filter

X-Band, Surface-Mount Filter in a miniature size.

Nuvotronics PolyStrata® Technology offers a high performance filter in a small form factor (12.5 x 4.5mm) with an insertion loss of 37dB rejection above 14GHz. This device is ideal for commercial satcom, defense and test & measurement for both Rx and Tx applications.

Buy Now
Datasheet

Features

Product NameSKUFrequency (Ghz)DimensionsInsertion Loss
12 GHz Lowpass FilterPSFL12S1212.5 x 4.5 x 1.75 (mm)< 0.75 dB

Product Benefits

  • Small Size and Lightweight – Weight: 0.38g
  • Near Ideal Performance – Low insertion loss and high rejection
  • Precision – Low part-to-part variation
  • Ease of Assembly – Standard SMT processes

Key Applications

DefenseSatellite CommunicationsTelecomTest & Measurement
