Ultra-Low Loss RF/mmWave Signal Routing
Our interconnect transmission lines and crossovers deliver ultra-low loss signal routing for high-frequency RF/mmWave systems. Built using proprietary PolyStrata® technology, these air-dielectric, coaxial, monolithic structures support wide band performance with excellent phase stability. Featuring wire bond interfaces and surface mount terminations, these mmWave transmission lines enable seamless integration with MMIC devices, thin film circuits, and standard PCB architectures.
Interconnect Transmission Lines for RF/mmWave Signal Routing
- Ultra-Low Loss Performance — Air-dielectric coaxial lines maintain signal integrity in RF/mmWave systems
- Wide Band Operation — Monolithic transmission lines support broad RF/mmWave frequency coverage
- Flexible Integration Options — Wire bond interfaces for MMIC devices and thin film circuits
- Surface Mount Terminations — Simplify integration with standard PCB architectures
- High Isolation & Phase Stability — Enable precise signal routing in dense RF/mmWave designs
Key Applications

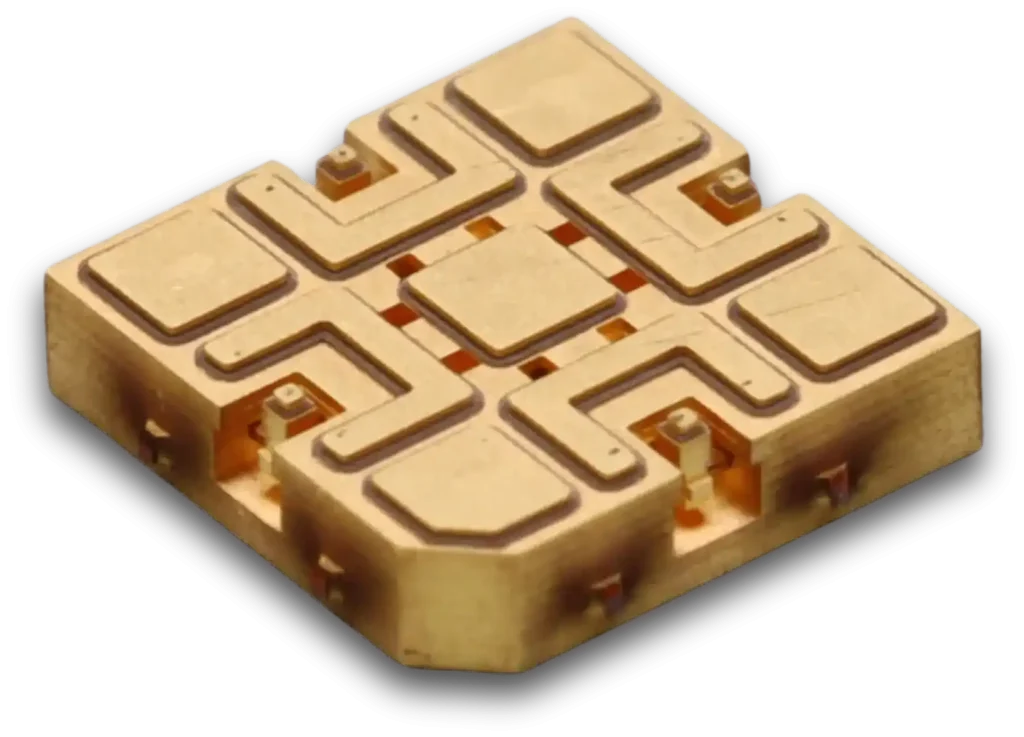

Our RF/mmWave Interconnect Transmission Lines and Crossovers
| Product Name | Description | Launch | Frequency (Ghz) | Insertion Loss | Isolation (*Shielded) | Market | Data Sheet | Buy |
|---|---|---|---|---|---|---|---|---|
| Ultra-Broadband, Cross-over Interconnect Bridge: PSTLC04W |
| Wire-bond | DC - 70 | 0.2 dB | -80 dB* | Defense, Telecom, Test & Measurement |
|
|

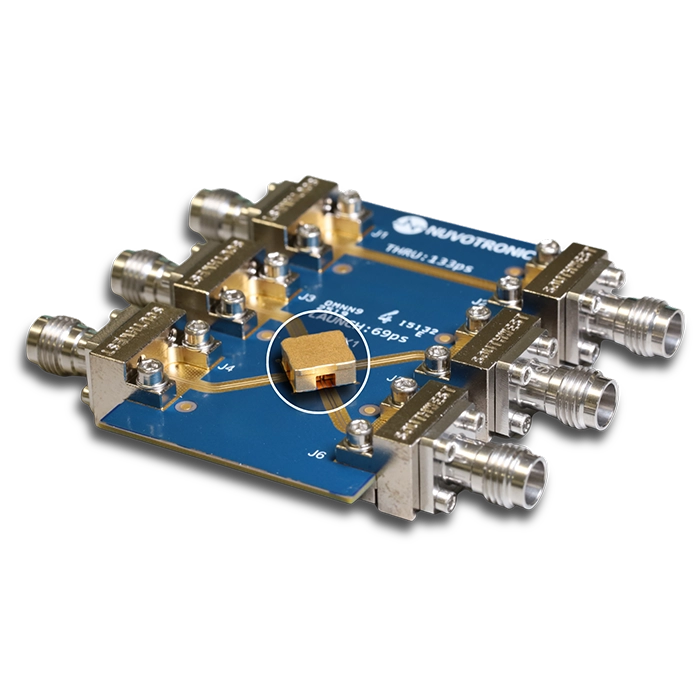

| Ultra-Broadband, Cross-over Interconnect Bridge: PSTLC04S |
| SMT | DC - 50 | 0.2 dB | -45 dB | Defense, Telecom, Test & Measurement |
|
|
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions
Explore Our RF/mmWave Interconnect Transmission Lines and Crossovers
Browse our standard interconnect transmission lines and crossovers or collaborate with our team to develop a high-performance surface mount solution for your RF/mmWave system design.
