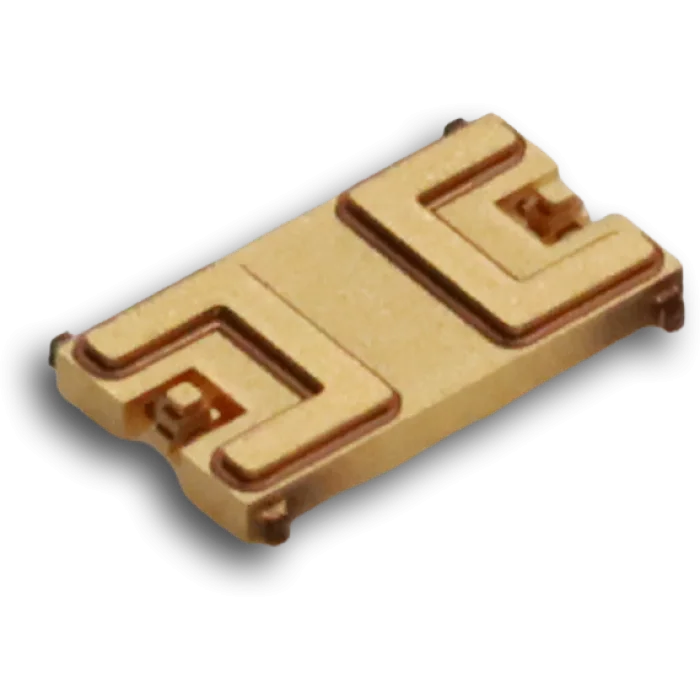

The PSTLC02S is a 3.0 x 1.6 x 0.4 mm single-path cross-over, interconnect bridge. It has superior performance of typical 0.1dB IL and better than 20dB return loss over a frequency range of DC–67GHz. The isolation is >40dB over the frequency range. These devices were designed for high-density, multi-channel receivers to manage line routing while helping to minimize the number of PCB layers.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| Ultra-Broadband, Cross-Over Interconnect Bridge: PSTLC02S | PSTLC02S | DC - 67 | 3 x 1.6 x 0.4 (mm) | 0.2 dB |
Product Benefits
- Small Size
- Wide operational range: DC–67GHz
- Low loss, high isolation
- CTE matched to PCB substrates
Key Applications
EWRadarSatellite CommunicationsTelecommunicationsTest and Measurement
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions

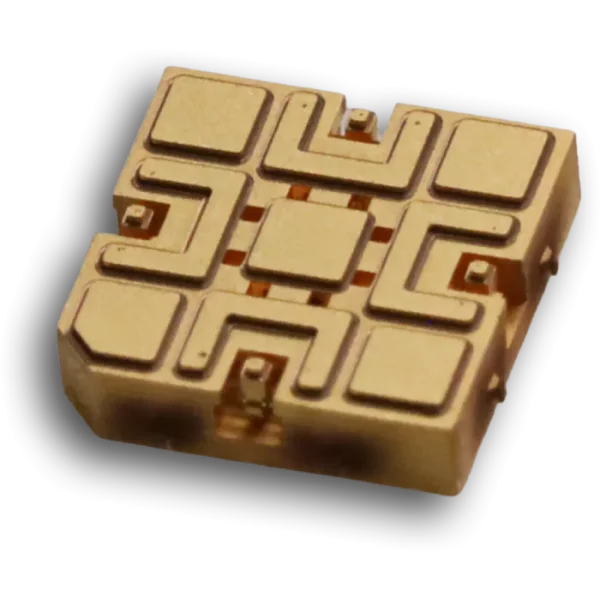

Explore Our RF/mmWave Interconnect Transmission Lines and Crossovers
