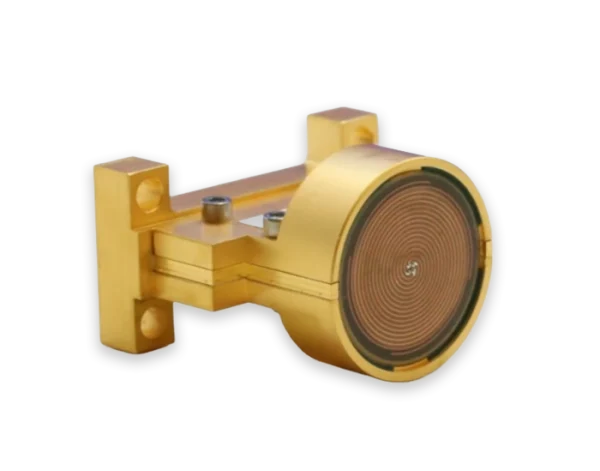

Nuvotronics offers a market leading cavity backed spiral antenna in a 1/2 inch diameter package. The 2-arm antenna includes an integrated wideband balun and can be configured as right or left with either a 2.92 mm, 2.40 mm, or 1.85 mm connector.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|

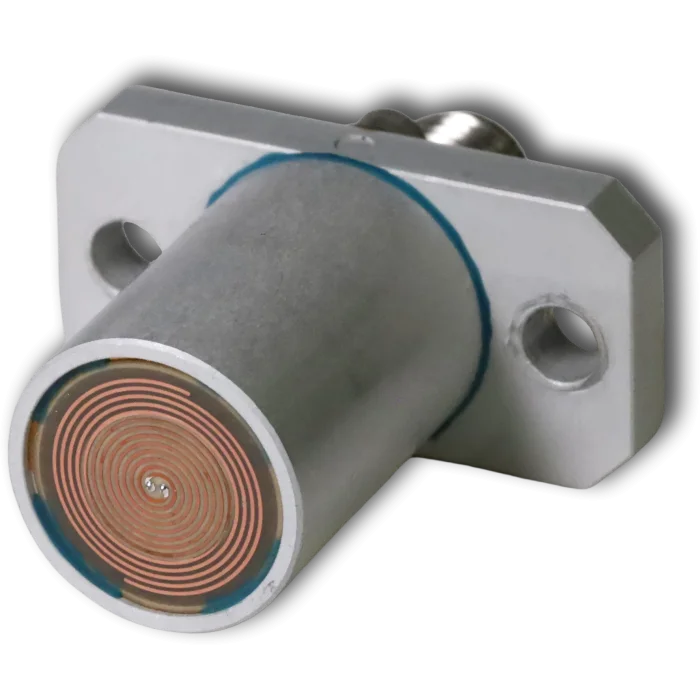

| 18 - 60 GHz Spiral Antenna | PSA1850C | 18-50 | 29.7 x 12.7 x 25.4 (mm) | |

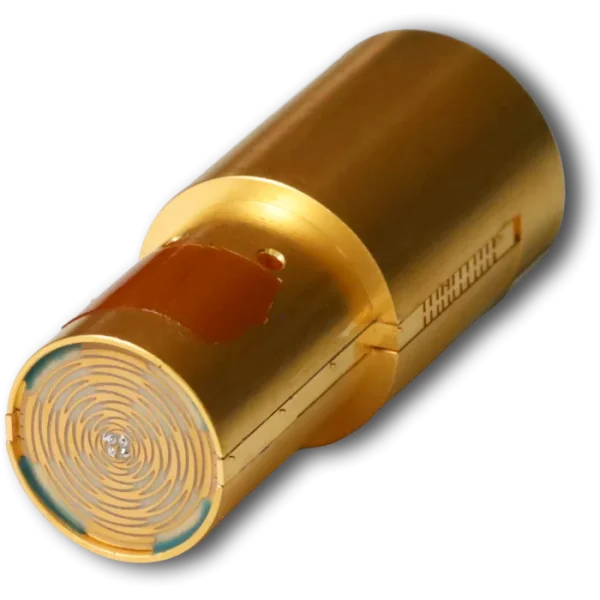

| 18 - 50 GHz Sinuous Antenna | PSA1850C-4 | 18-50 | 30 x 10.4 (mm) |
Product Benefits
- Right or left polarization
- Available with 2.40/2.92/1.85 mm connector options
- 18 – 60 GHz coverage
- 0.5” diameter package, excluding mounting flange
- 3 – 7 dBi realized gain
- Boresight axial ratio better than 2 dB
- Weighs 10.1 grams (Typ.)
Key Applications
InterferometryRadar Warning ReceiversSIGINT/ELINTWideband Direction Finding
