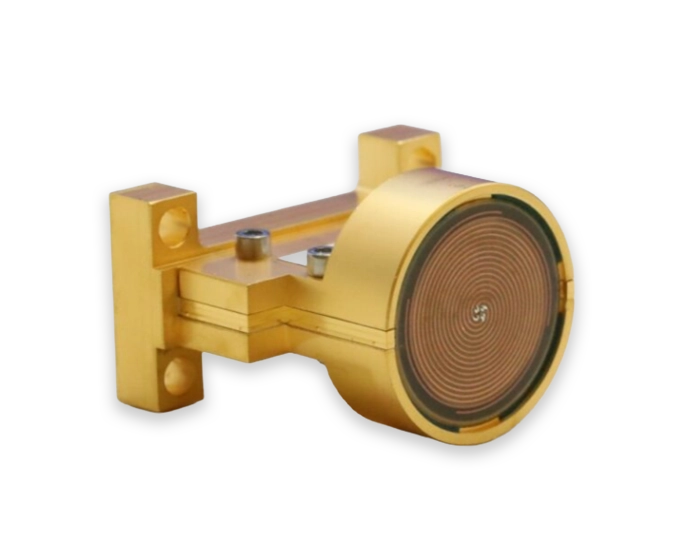

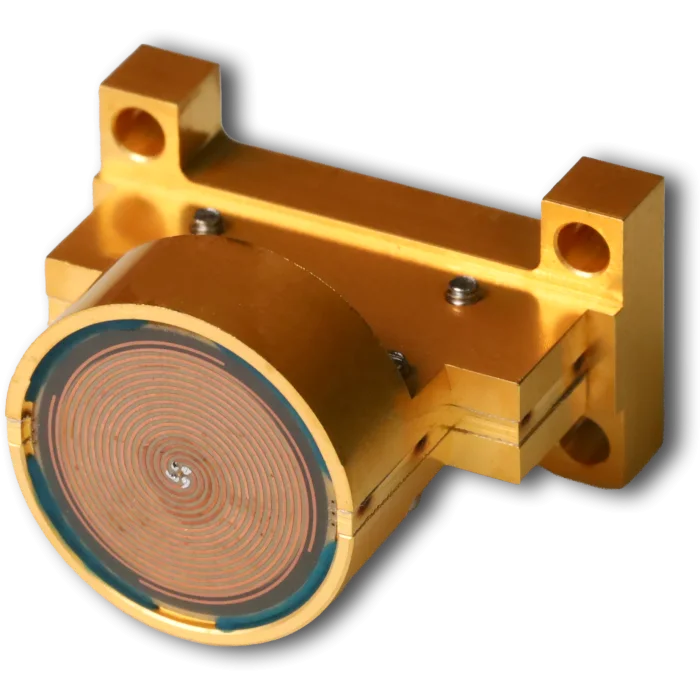

Nuvotronics offers a market leading cavity backed four arm spiral antenna that supports multiple radiating modes for compact direction finding applications. The 4-arm antenna can be driven in sum or delta mode for wideband direction finding in monopulse tracking applications.
| Product Name | SKU | Frequency (Ghz) | Dimensions |
|---|---|---|---|
| 18 – 60 GHz Spiral Antenna | PSA1026744 | 18 - 60 | 29.7 x 12.7 x 25.4 (mm) |
Product Benefits
- Available in Right or Left Hand Polarization
- Compatible with Analog or Digital Beamforming Techniques
- 2-6 dBi Realized Gain
- Boresight Axial Ratio <2dB
- Low Weight (10g max.)
Key Applications
InterferometryRadar Warning ReceiversSIGINT/ELINTWideband Direction Finding
