Surface-Mount Diplexer in a minature size.

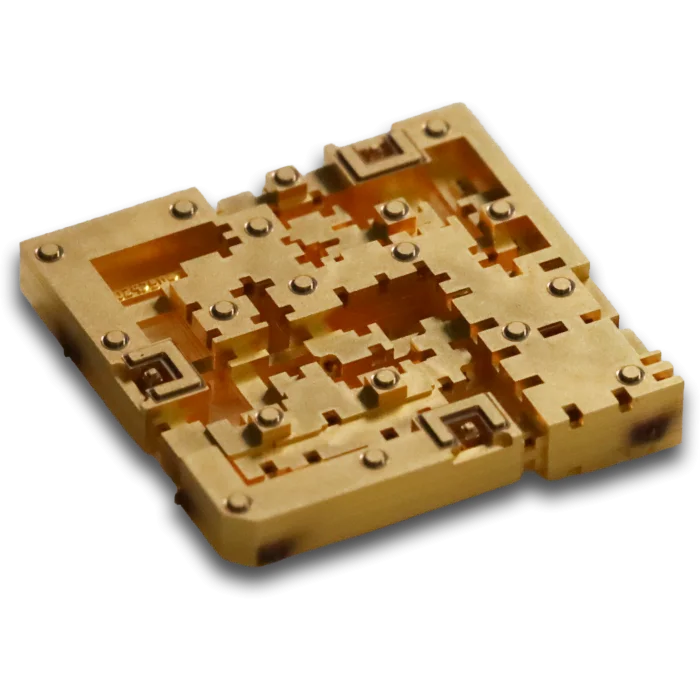

This diplexer is part of the µMUX series which offers high performance in a small form factor (9.7 x 10mm). The diplexer is a low-pass filter from DC-18GHz and band-pass filter from 18-38GHz in a SMT PCB mountable configuration.
| Product Name | SKU | Frequency (Ghz) | Dimensions | Insertion Loss |
|---|---|---|---|---|
| 18 GHz “Cross-Over” LPF & BPF Diplexer | PSD1840B2S | 0 - 18 - 40 | 10 x 9.7 x 1.8 (mm) | 1.2 dB |
| 18 GHz “Cross-Over” LPF & HPF Diplexer | PSD1840B2SV2 | 0 - 18 - 40 | 7.9 x 9.7 x 1.8 (mm) | 1 dB |
Design Filters With Strataworks® or Contact Our Team for Tailored Solutions
Explore proven designs or request a custom solution optimized for your frequency plan, channel count, and SWaP requirements.
