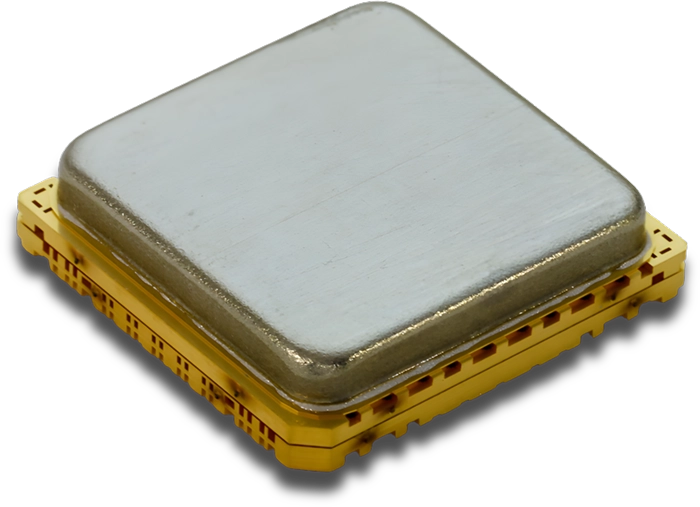

The PSB1030148 is an 18-40GHz, 4 State, Switched Filter bank deploying low-loss, highly selective filters which are hot-switchable up to 24dBm of power input while switching at speeds <200 nsec. The 4 channels (17.5-24, 23-29.5, 28.5-35 and 34-40GHz) is configured with 1GHz of band overlap at insertion loss per channel in the <7.5dB while providing high rejection of up to 75dB. This superior performance is contained within a small footprint of 15.8 x16.3x4mm which is easy to integrate. It utilizes SMT launches on the bottom side of the assembly which supports industry standard solder reflow or epoxy PCB attach techniques.
| Product Name | SKU | Frequency (Ghz) | Insertion Loss |
|---|---|---|---|
| 17.5 - 24 - 29.5 - 35 - 40 GHz 4-Channel | PSB1030148 | 17.5 - 24 - 29.5 - 35 - 40 | < 7.5 db |
Product Benefits
- Enables wideband system coverage with a single, compact filter bank, reducing the need for multiple discrete filters.
- Improves system performance and signal integrity through low insertion loss and high out-of-band rejection.
- Supports fast, dynamic frequency switching with out power-down, ideal for agile EW applications.
- Handles high input power levels, simplifying system design and improving robustness.
- Reduces SWaP-C with a small, low-profile package that integrates easily into dense RF assemblies.
- Simplifies manufacturing and integration using industry-standard SMT reflow or epoxy PCB attach methods.
Key Applications
Electronic WarfareSatellite CommunicationsTelecomTest & Measurement
