SMT launch configuration (Dual-Path connections)

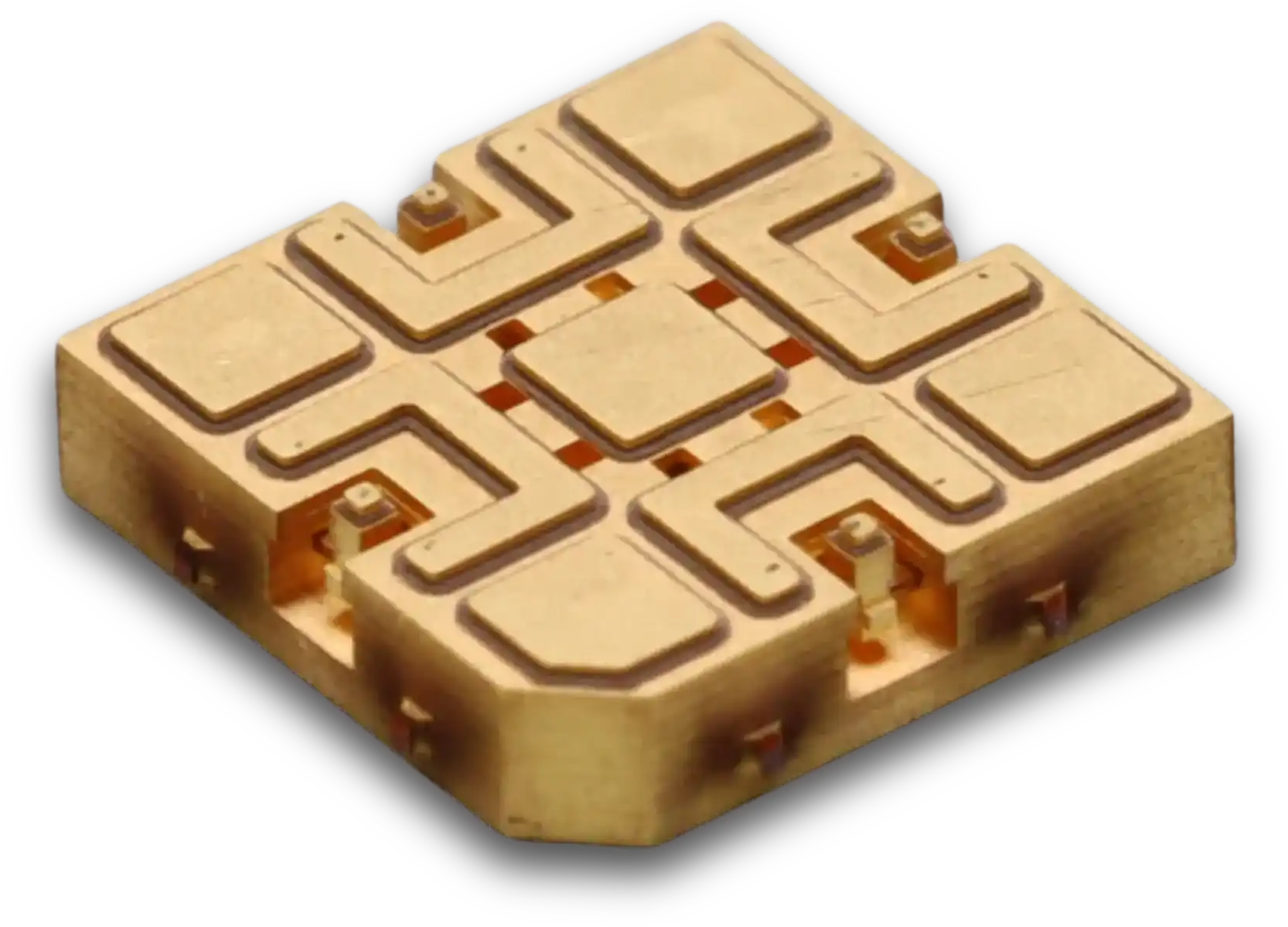

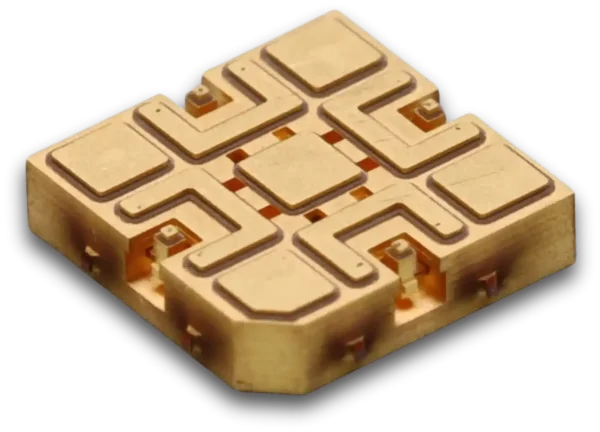

The PSTLC04S is a 4x4mm dual-path cross-over, interconnect bridge. It has superior performance of typical 0.2dB IL and better than 30dB return loss over a frequency range of DC-50 GHz. The isolation is better than -50dB over the frequency range. These devices were derived for high-density, multi-channel receivers to manage line routing while helping to minimize the number of PCB layers.
