SKU: PSC50D07S

18 – 50 GHz Directional Coupler

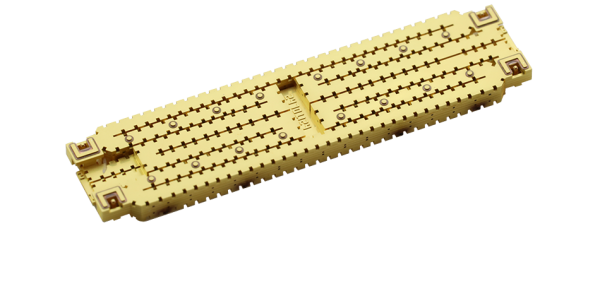

Nuvotronics air-coax technology delivers performance and precision for your millimeter-wave systems. PSC50D07S is a surface-mount 20 dB directional coupler covering 18 -50 GHz.

The PSC50D07S is self-shielded and uses an air dielectric. The precise PolyStrata® technology results in excellent amplitude and phase balance along with low insertion loss. The device is designed to be surface mounted using conventional SMT processes and is available in tape and reel packaging for bulk orders.

Buy Now

Datasheet

Features

Product Name	SKU	Frequency (Ghz)	Insertion Loss
18 - 50 GHz Directional Coupler	PSC50D07S	18-50	0.2 dB

Product Benefits

Small Size and Lightweight
Near Ideal Performance – Low insertion loss
Precision – Low part-to-part variation
Ease of Assembly – Standard SMT Processes
Self-shielded

Key Applications

EWRadarSIGINT

Related Products

SKU: PSC18H17S

2 – 18 GHz 90 Degree Hybrid Coupler

SKU: PSC18H07S

6 – 18 GHz 90 Degree Hybrid Coupler

SKU: PSC50H08S

18 – 50 GHz 90 Degree Hybrid Coupler

Design Filters With Strataworks^TM or Contact Our Team for Tailored Solutions

Design With StrataWorks

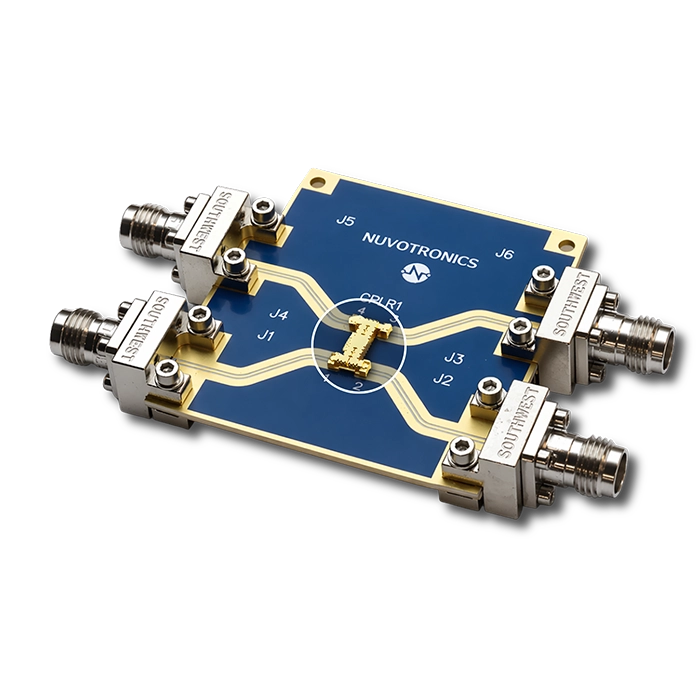

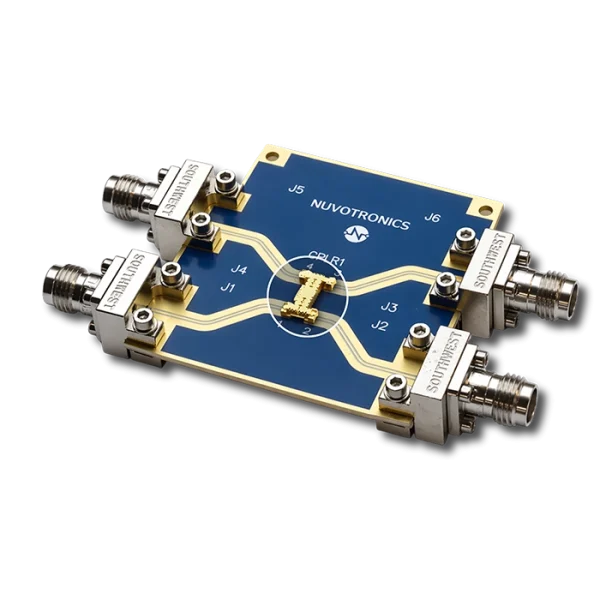

Explore Our Selection of Multi-Octave Directional RF Couplers
