SKU: PSX29Q22W

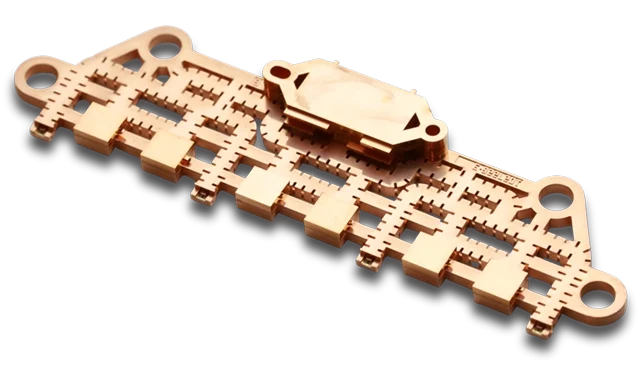

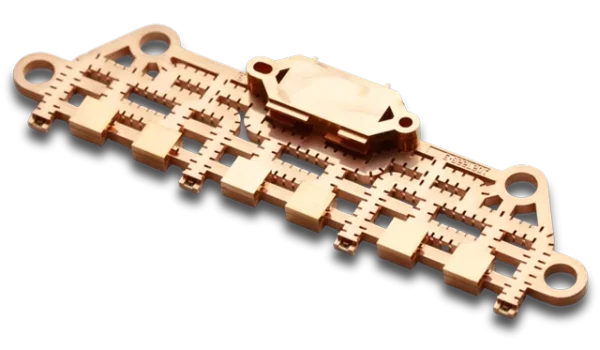

18 – 40 GHz 4-Way Combiner

High performance 4-way power combiner for 18-40 GHz applications.

Nuvotronics PolyStrata® Technology provides low loss combining in a small form factor. This 4-way combiner covers 18-40 GHz with 0.5 dB insertion loss. It has four wirebond inputs and a coax output. Excellent amplitude and phase balance will result in best system level performance.

Buy Now

Datasheet

Features

Product Name	SKU	Frequency (Ghz)	Insertion Loss
18 - 40 GHz 4-Way Combiner	PSX29Q22W	18-40	0.4 dB

Product Benefits

Small Size and Lightweight
Near Ideal Performance – Low insertion loss
Good phase and amplitude balance
Precision – Consistent part-to-part performance

Key Applications

EWRadarSIGINT
