Compact, Low-Loss Multiplexers and Diplexers for Mission-Ready Systems
Our micro-multiplexers (μMUX) are engineered for SWaP-constrained defense and electronic warfare systems where size, performance, and reliability are critical. Our multiplexers, diplexers, and wideband contiguous multiplexers deliver compact, low-loss, and thermally resilient performance designed for contested and demanding operational environments.
Multiplexers Designed for Integration and Efficiency
- Compact, SWaP-Optimized Architectures — Exceptionally small and lightweight designs for size-constrained defense platforms
- Ultra-Low Loss & High Isolation — Maintain signal integrity in congested and contested RF environments
- Thermally Resilient, Mission-Ready Designs — Reliable performance in harsh operational conditions
- Manufactured for Consistency at Scale — Tight tolerances and repeatable performance across production volumes
Key Applications

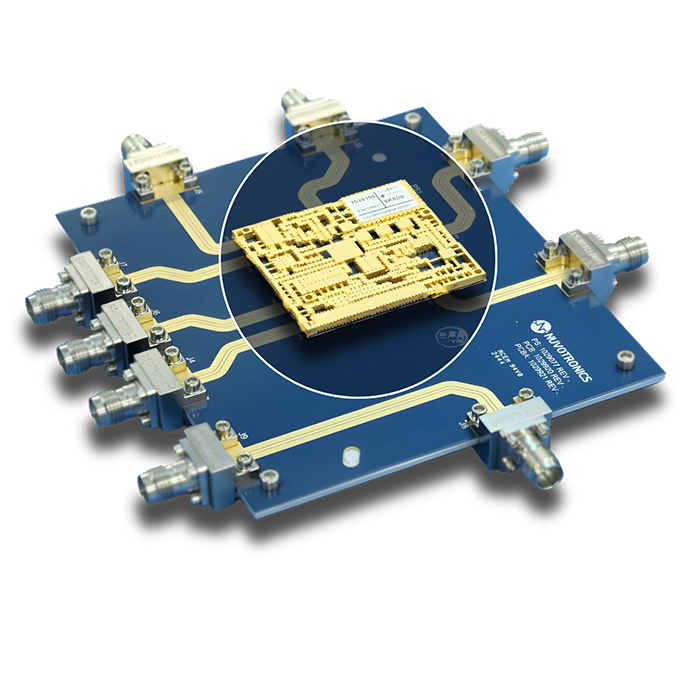

Our Micro-Multiplexers (μMUX)
| Product Name | SKU | Frequency (Ghz) | Insertion Loss | Dimensions | Data Sheet | Buy |
|---|---|---|---|---|---|---|
| 18 GHz “Cross-Over” LPF & BPF Diplexer | PSD1840B2S | 0-18-40 | < 1.25 dB | 10 x 9.7 x 1.75 (mm) |
|
|
| 18 GHz “Cross-Over” LPF & HPF Diplexer | PSD1840B2SV2 | 0-18-40 | < 1 dB | 7.9 x 9.7 x 1.75 (mm) |
|
|
| 3-Channel Multiplexer | PSM0206B3S | 0-2-3.5-6 | < 1.5 dB | 26.5 x 25.7 x 1.75 (mm) |
|
|
| 4-Channel Multiplexer | PSM0640B4S | 0-6-10.5-18-40 | < 1.5 dB | 24.7 x 14.7 x 1.75 (mm) |
|
|
| 5-Channel Multiplexer | PSM0218B5S | 0-2-4-8-12-18 | < 2 dB | 26.5 x 26 x 1.75 (mm) |
|
|
Design Filters With StrataworksTM or Contact Our Team for Tailored Solutions
Flexible Multiplexer Solutions for Mission-Critical Systems
Explore proven designs or request a custom solution optimized for your frequency plan, channel count, and SWaP requirements.
