Design, simulate, and order custom surface-mount filters from 7 GHz to 60 GHz — all online.
Why RF Engineers Choose StrataWorks
StrataWorks™ is more than an RF filter design calculator—it’s a complete online tool built for engineers who require simulation accuracy that translates directly into manufactured hardware. By integrating electromagnetic modeling, real-time S-parameter visualization, and proven PolyStrata® manufacturability into a single workflow, StrataWorks ensures the performance you validate online is the performance delivered in production. The result: faster development cycles, reduced iteration risk, and confidence from prototype through production.
Key Benefits
- Advanced Filter Designs: Supports 5th, 7th, 9th, and 11th-order filters for sharper roll-off and superior rejection—manufactured to match simulated rejection and insertion loss performance.

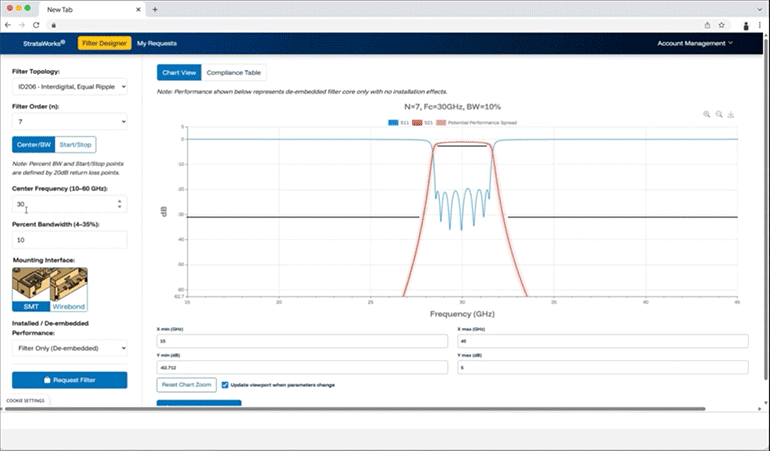

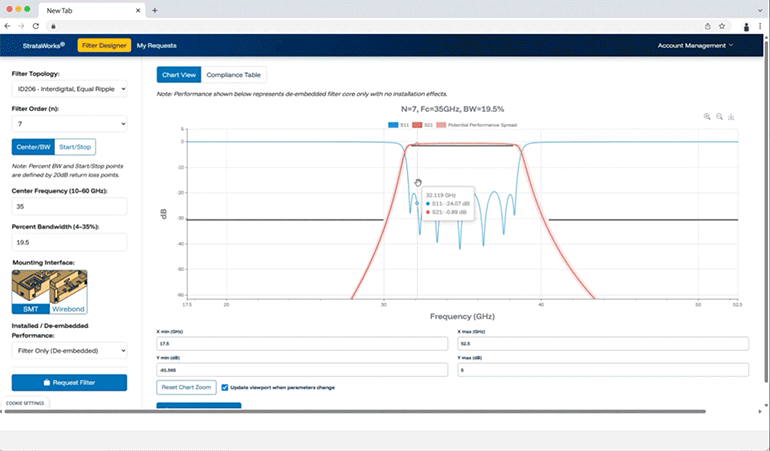

- Real-Time Performance Data: Generate instant S-parameters and detailed specifications during configuration, with hardware built to correlate directly to simulated results.

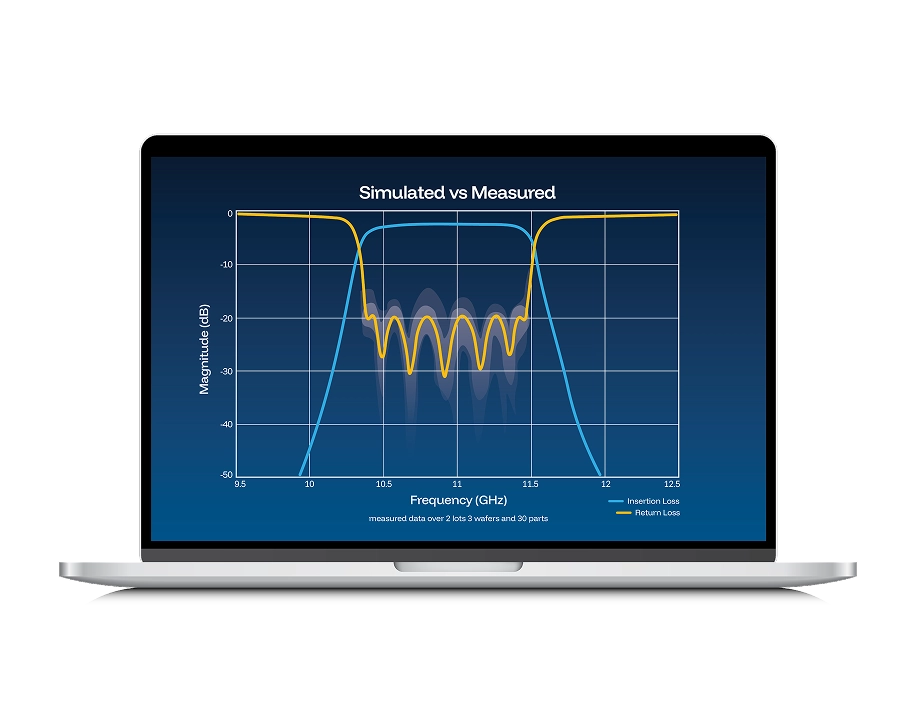

- Built-In Performance Correlation: Every StrataWorks design leverages patented PolyStrata® 3D microfabrication to ensure simulated models translate into repeatable, RF-tested hardware with predictable performance.
- Faster Quotes: Receive tailored pricing for your custom RF filter within 24 hours—based on validated, production-ready designs.
- Rapid Delivery: Get 100% RF-tested parts as fast as 10 weeks, ready for system integration and qualification with no performance surprises.
All-in-One Features for Smarter RF Filter Design
- Filter design simulation: Use built-in calculators for bandpass and low-pass filter design, optimized for 7 GHz to 60 GHz operation.
- Custom RF filter flexibility: Tailor parameters such as filter order, topology, and target rejection to meet exact system requirements.

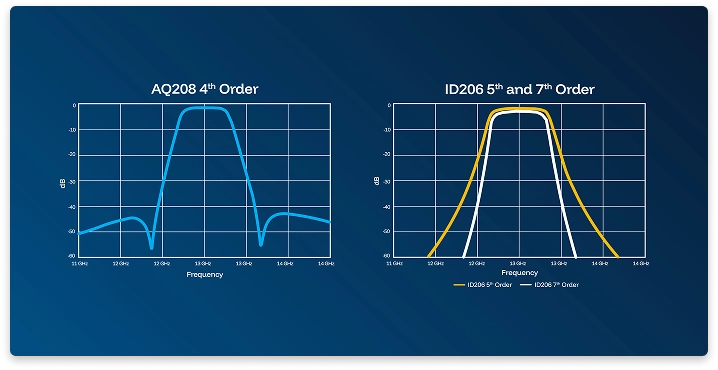

- X-Band PolyStrata Filters: Extend StrataWorks coverage across the full X-band (7–12.5 GHz) with a lower-loss, compact architecture delivering high rejection efficiency in smaller footprints.

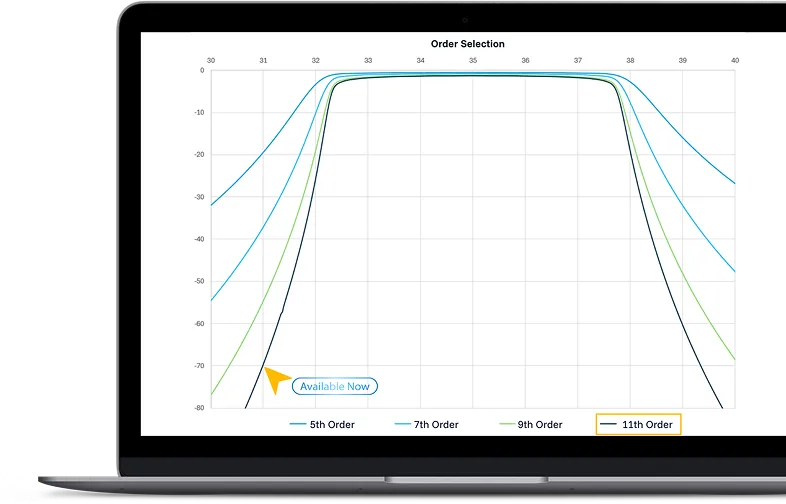

- 11th-Order Filter Ordering: Order higher-order filters directly within StrataWorks to achieve steeper rejection and enhanced selectivity for demanding system requirements.

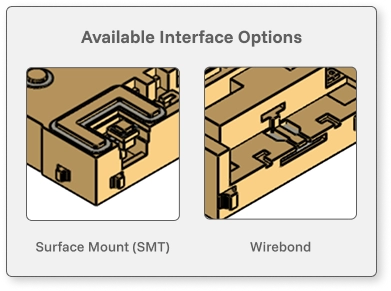

- Wire Bond Interface Option: Configure filters with SMT or centered GSG wire-bond launches, fully modeled for chip-and-wire integration while preserving PolyStrata® performance.
- Comprehensive outputs: Sign up to download performance data, mechanical outlines, and test-ready specifications.
- End-to-end workflow: Design, validate, and order filters in a single session—no separate CAD tools or offline steps needed.
- PolyStrata precision: Achieve high-Q, low-loss performance and excellent repeatability that surpass the limits of thin-film filters thanks to our proprietary 3D microfabrication process.
Start Designing with StrataWorks
Step 1: Instantly Design & Simulate Your RF Filter

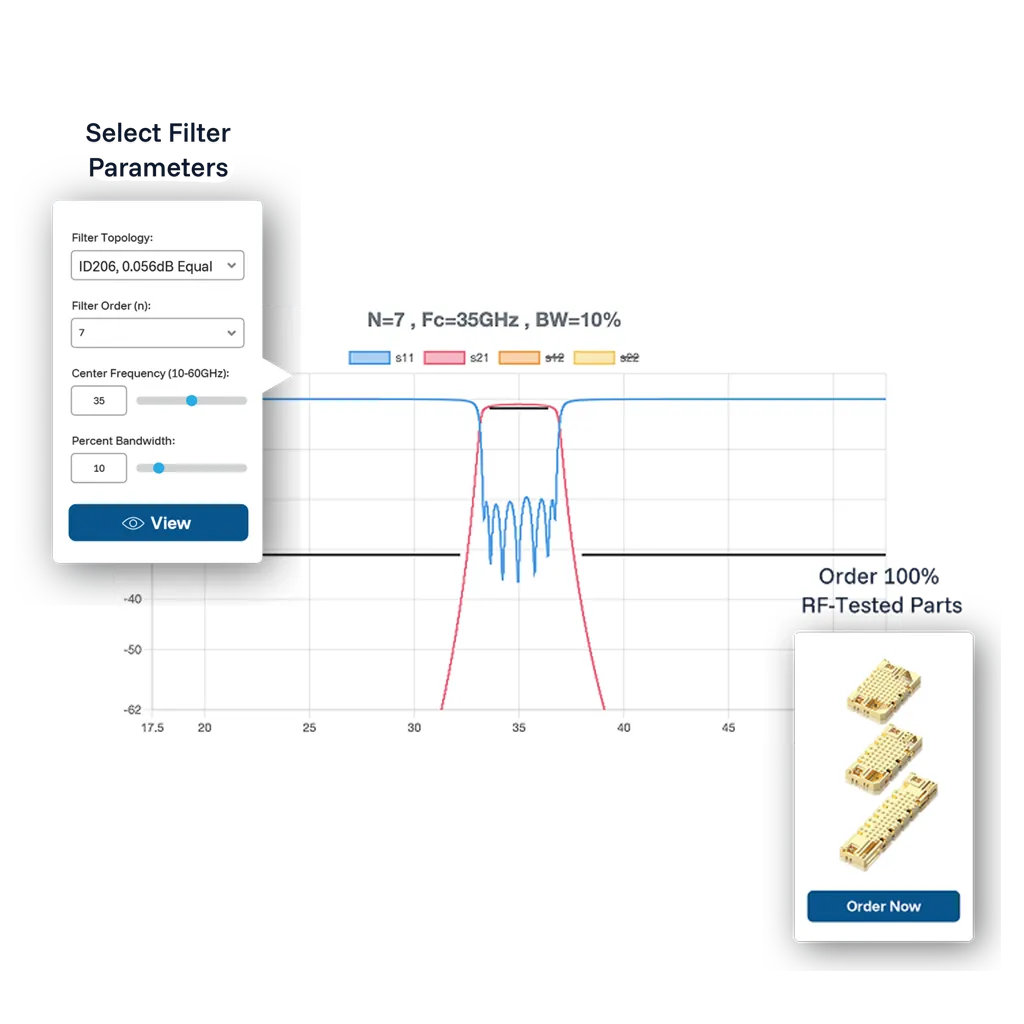

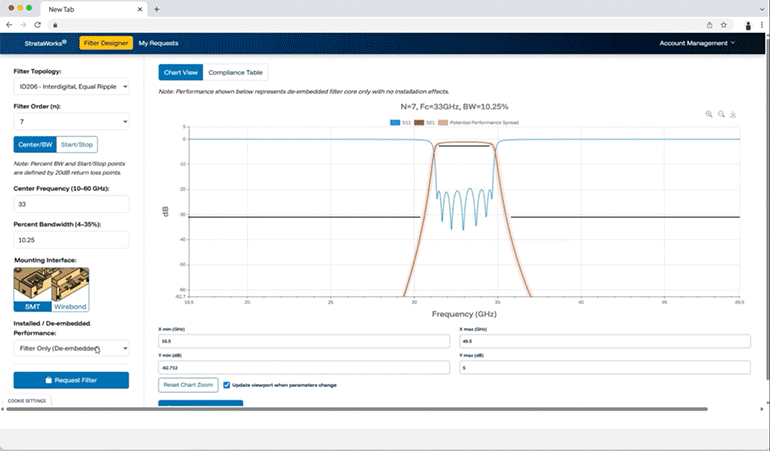

Create custom RF filters online—no software or setup required. Choose from advanced 5th, 7th, 9th, and 11th-order options and generate optimized designs with S-parameters and performance specs in real time.
Step 2: Sign Up to Refine & Download Your Design
Sign up to refine your design, download files, and explore real-time performance insights to perfect your filter before production.
Step 3: Order Fully Tested RF Parts on Our Regular Fabrication Runs

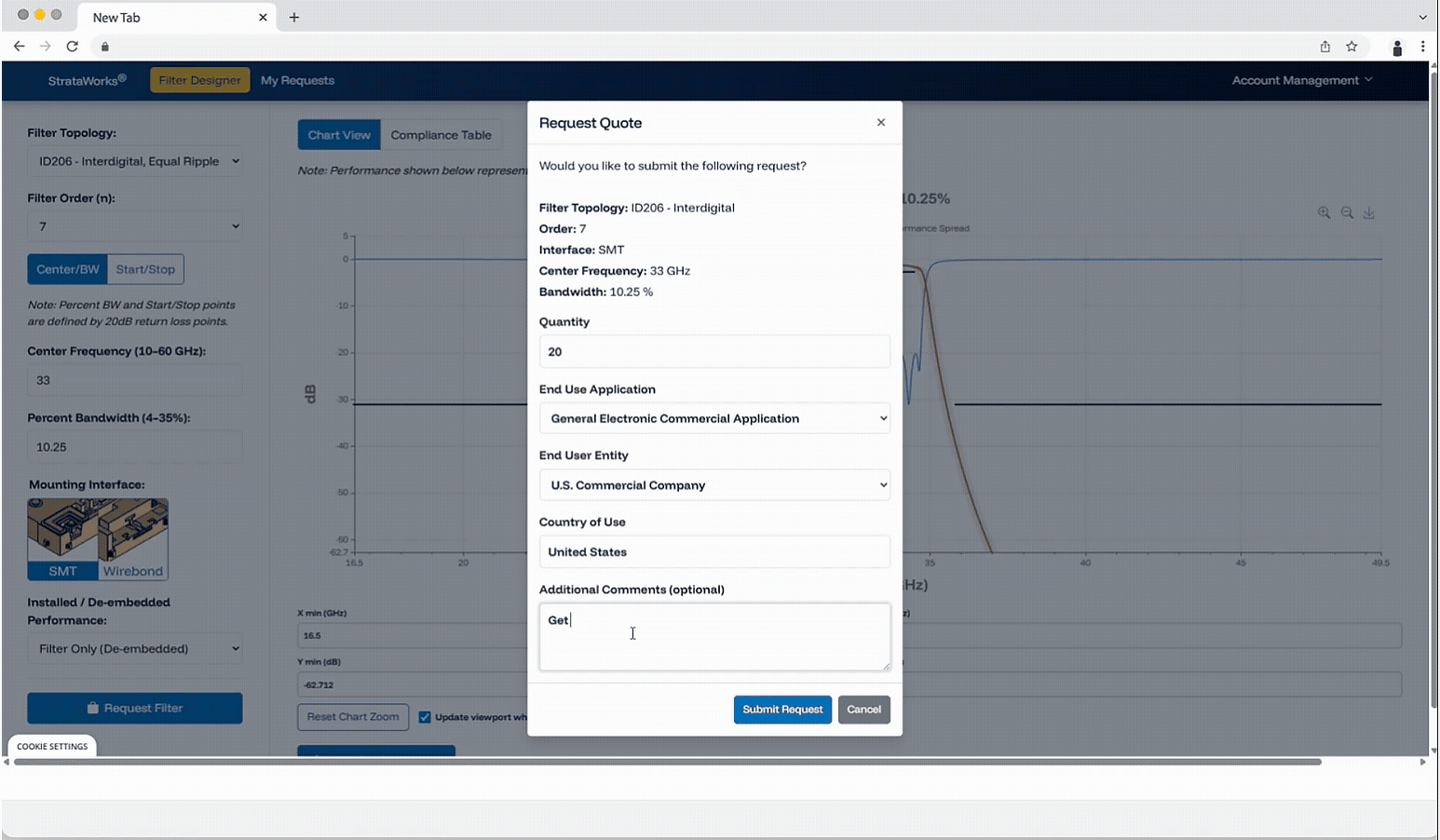

Request a quote for 100% RF-tested parts, fabricated on our bi-monthly multi-user runs—delivered in as fast as 10 weeks.
